Athletics technology, built by the club

PolyField

PolyField is measuring, results and scoreboard software designed by Kingston & Poly volunteers to make technology accessible to grass roots athletics.

PolyField logo

Built by and for athletes, officials and spectators

Big-meeting technology, at club meetings

Accurate distances, results on screen within moments, and graphics to share afterwards used to need a big budget. We wanted our own athletes to have that experience, and we wanted other clubs to be able to as well, so our volunteers built PolyField.

It started at Kingston & Poly, the longest-established athletics club in Kingston, and we run it at our own meetings: electronic timing, a finish-line LED display, electronic wind measurement and live online results.

Visit polyfield.co.uk ↗ (opens in a new tab)Download the apps ↗ (opens in a new tab)

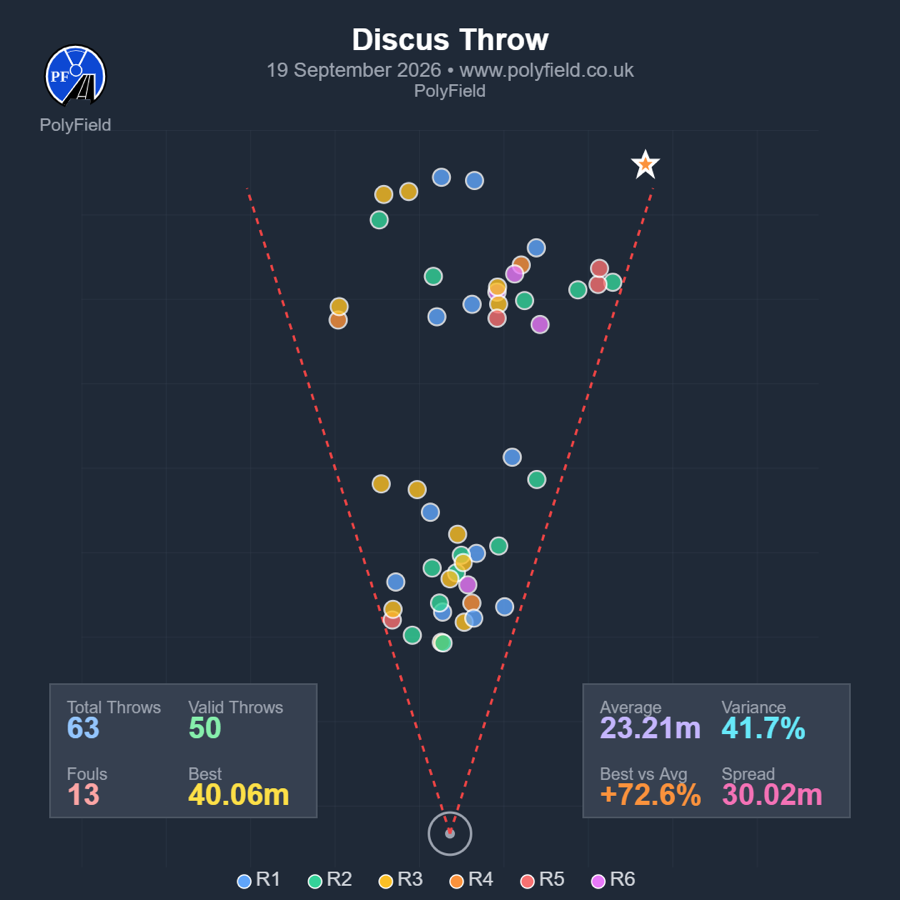

A PolyField heat map for the discus: each dot is a measured throw inside the landing sector, coloured by round, with throw statistics beside it
A PolyField heat map from the KACPH Throws Open, 19 September 2026. Each dot is a measured throw, coloured by round.

The PolyField suite

Four parts, one system

In the field

PolyField App

An Android app that officials use to measure throws and jumps with an electronic distance measuring (EDM) device, so field events get the same accuracy as the big meetings.

  • Calibration wizards: three steps for throws, two for horizontal jumps
  • All throws (including seated), long and triple jump, and vertical jumps
  • Manages athlete progression ("the cut") through rounds 4, 5 and 6
  • Works with electronic wind gauges
  • Stand-alone mode with local heat maps, plus a demo and training mode

Built for 8-inch screens; a rugged tablet such as the Oukitel RT3 is recommended for UK weather.

App guide ↗ (opens in a new tab)

The controller

PolyField Server

Runs on a Windows or Mac computer on the venue's own network, with no internet needed. It collects every measurement from the field apps and turns it into live results.

  • Imports events from Athletics.App and OpenTrack, with live sync for OpenTrack directors and start lists from Roster Athletics
  • Logs wind readings every second (Gill WindSonic 75 or PolyField Wind Mini)
  • Results board, standings, announcer feed and para-athletics (RAZA) rankings as web pages
  • Heat maps, statistics and social-media graphics, with optional cloud publishing
  • Interface in English, French, Spanish, Dutch and Portuguese, plus a JSON API

Server manual ↗ (opens in a new tab)

For everyone watching

Displays

Results appear on any screen with a web browser, or on the Android display app: a "latest results" view and full live tables, so athletes, parents and spectators can see standings as they change.

Wind readings can also be shown on a supported display board (Gill countdown display or Daktronics TI-2021).

On the track

PolyField Track

Scoreboard software for FinishLynx and TimeTronics photo-finish systems. Results go up on screens around the venue as soon as the operator saves them.

  • One computer serves unlimited displays, with nothing to install on them
  • Overlays for messages, countdowns, record cards, the photo-finish image and a running clock
  • Layout Builder for your own scoreboard designs
  • Jump ruler widget for long and triple jump, and combined-events scoring on the 2026 UKA/ESAA tables
  • Athlete kiosk (search by name, club or bib), speed board and RAZA rankings

Track manual ↗ (opens in a new tab)

What makes it different

Designed to be easy

Simple EDM calibration

Wizards that take the mystery out of setting up an EDM, with clear pass/fail guidance on whether it is calibrated.

One-click measuring

Sight the prism and tap to measure. No need to press buttons on the EDM.

Works offline

Everything is stored locally, so the competition carries on if the internet doesn't. It uploads when you're back online.

Open to your tools

Works with Athletics.App and OpenTrack, and has a JSON API for your own integrations.

Equipment

What it works with

KindSupported
EDM total stationsPolyField Total Station (the Apeks AM02i, our flagship, with the software built in, Wi-Fi and an electronic level screen, so no tablet is needed). Other EDMs from APEKS, Hi-Target, Mato and GeoMax connect to an Android tablet by USB. Leica total stations work with the right communication plugin.
Wind gaugesGill Instruments WindSonic 75 and the PolyField Wind Mini
Display boardsGill countdown display (wind only) and Daktronics TI-2021 field display, plus any device with a web browser
Photo finishFinishLynx and TimeTronics (through PolyField Track)
Competition systemsAthletics.App, OpenTrack and Roster Athletics

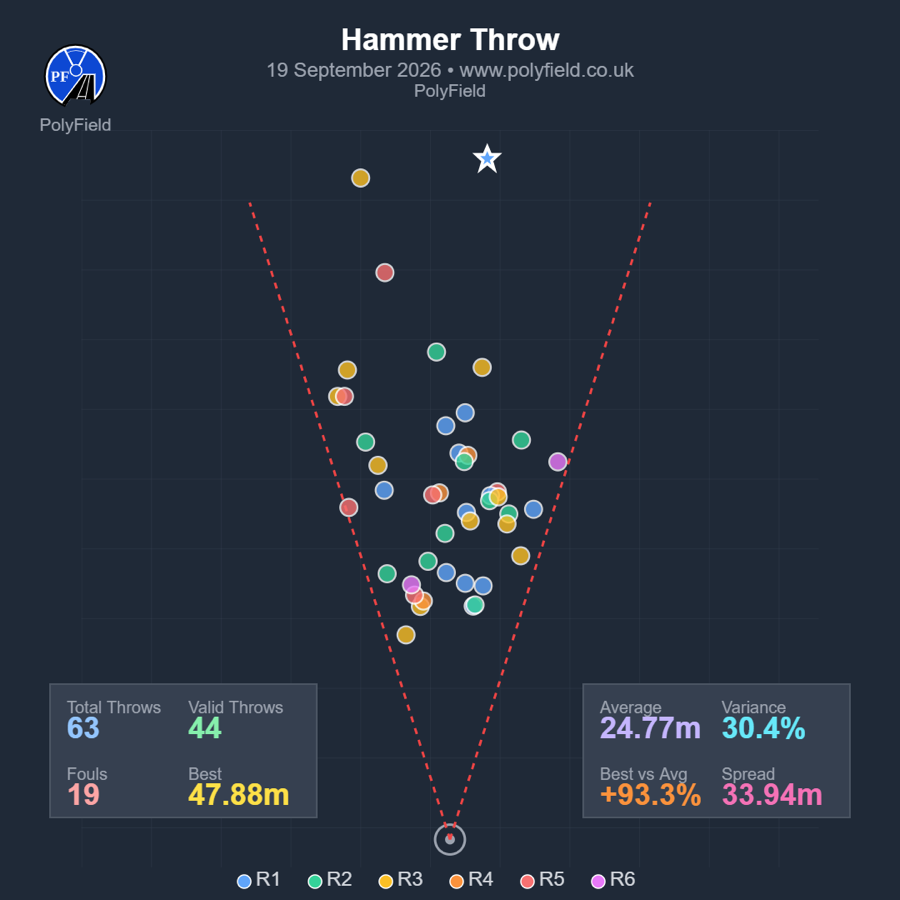

A PolyField heat map for the hammer throw showing landing positions in the sector, with statistics for total, valid and foul throws
Hammer, KACPH Throws Open, 19 September 2026.

Statistics and graphics

Every throw, every jump, every athlete

  • Heat maps show where throws land in each sector, which helps with official placement and safety planning
  • Whole-competition numbers: events, athletes, attempts, foul rate and more
  • Event insights: set-up times, duration, winning, average and median marks, and success rates by height for vertical jumps
  • Wind analysis with headwind and tailwind graphs and World Athletics rules compliance
  • Share it: social-media-ready graphics, and one-click PDF export of everything
Volunteer

Learn the equipment

You can learn and get involved with PolyField at our meetings in a relaxed, low-pressure setting, and help deliver a higher level of competition for our athletes. No experience needed.

Volunteer with us
Community

Duke of Edinburgh

Our DofE programme introduces this technology to young people in the local community, as part of the volunteering and skills sections.

Ask about DofE
Your meeting

Try PolyField

Running a meeting and curious? Ask PolyField for a trial, or about hardware, support, sponsorship and media, through the form on polyfield.co.uk. Tutorials are there too.

Contact PolyField ↗ (opens in a new tab)

Partners: the networking and electrical infrastructure behind our measurement and results equipment was donated by IDSL Supplies Ltd. Interested in becoming title sponsor of the PolyField results software? Sponsorship. Technical help: Email support · Tutorials ↗ (opens in a new tab)

Athletics technology for everyone

Designed by Kingston AC & Polytechnic Harriers to improve accessibility of technology for grass roots athletics.

Explore PolyField ↗ (opens in a new tab)
